ninja 250 pict request

gnstalodz

gnstalodz

New member
Joined
Oct 15, 2007
Location
Dublin
Moto(s)
FXDX
Name
CJET
I need to see the diagram of a ninja 250 (mine is 1992) junction box. A guy has played around with the bike my sister just bought and im trying to reset it to norm... The original owner zip tied 2 computer fans to the radiator and now its blowing a a fuse every so often. I dont know when but this junction box looks all funky. TY guys

Moved to garage.

Computer fans? Maybe I should move it to website/geek speak. :p

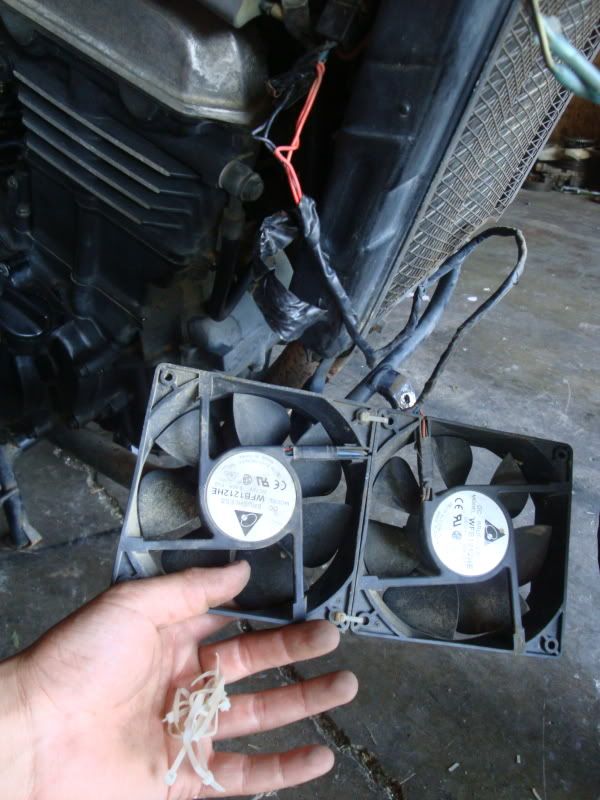

yup... zip tied


And they said they bypassed some kind of starter solenoid thing....???

Ok I removed the fans but i need to ride it around to see if it's still blowing a fuse or not.

The right handle is not working at all... I dont have use of the start or kill switch... I have to touch two wires connected to the place where the 30A fuse is blowing...

If you can't figure it out, please take it to a mechanic. If you touch the wrong wires together you could burn out some expensive parts/wiring. :(


Last edited:
My god, what a fool (the original owner).

On that note:

Does the same principal of disconnecting the negative terminal from the battery before doing electrical work apply to motorcycles as it does to cars?

It looks to be a relatively simple fix, assuming that's the only hack-job done.

well when it does run, it does keep it pretty cool... I had a chance to ride it around, and aside from blowing the fuse, it worked well
